Your location: Home >Product > Locks > MS106

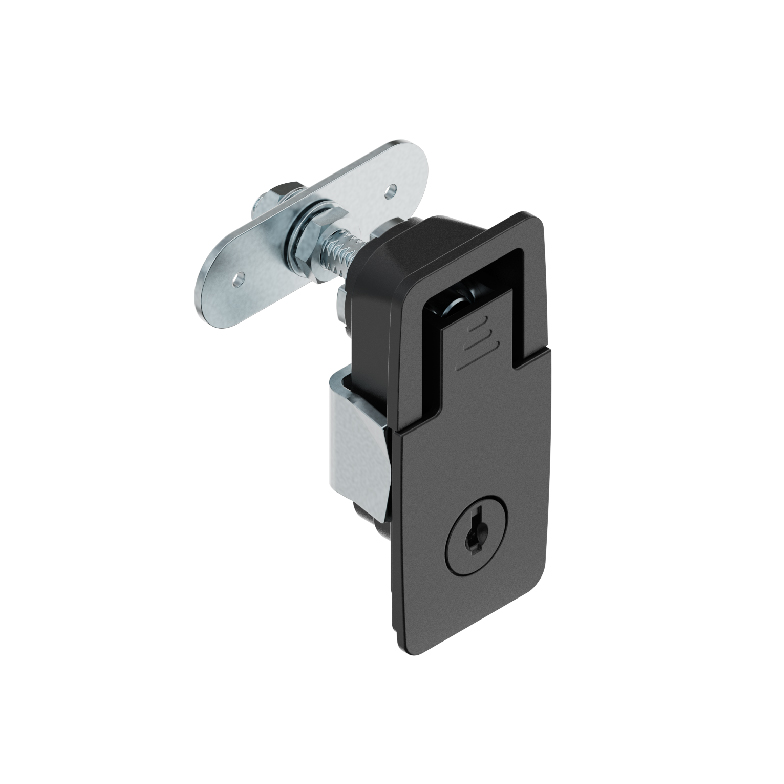

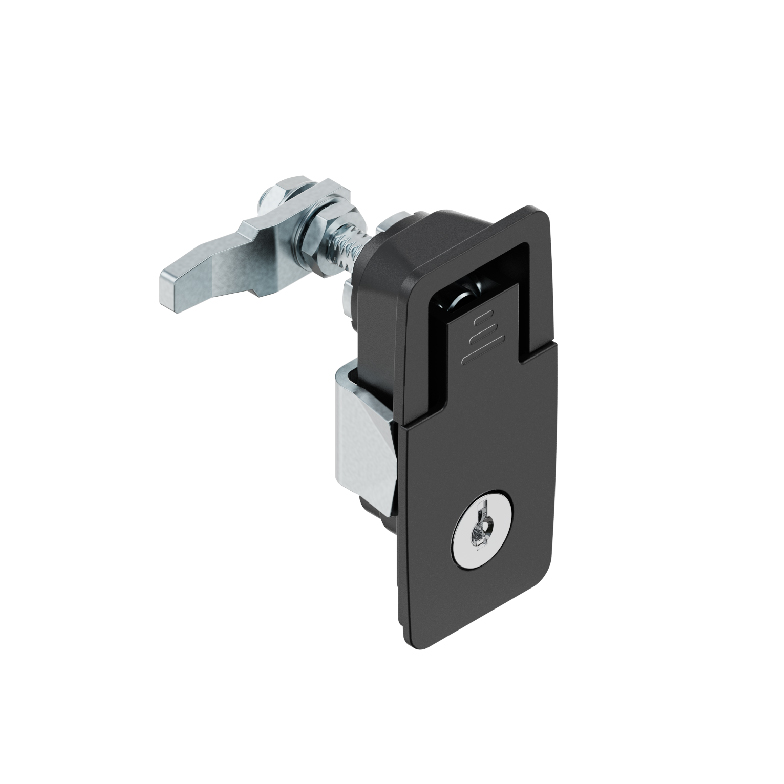

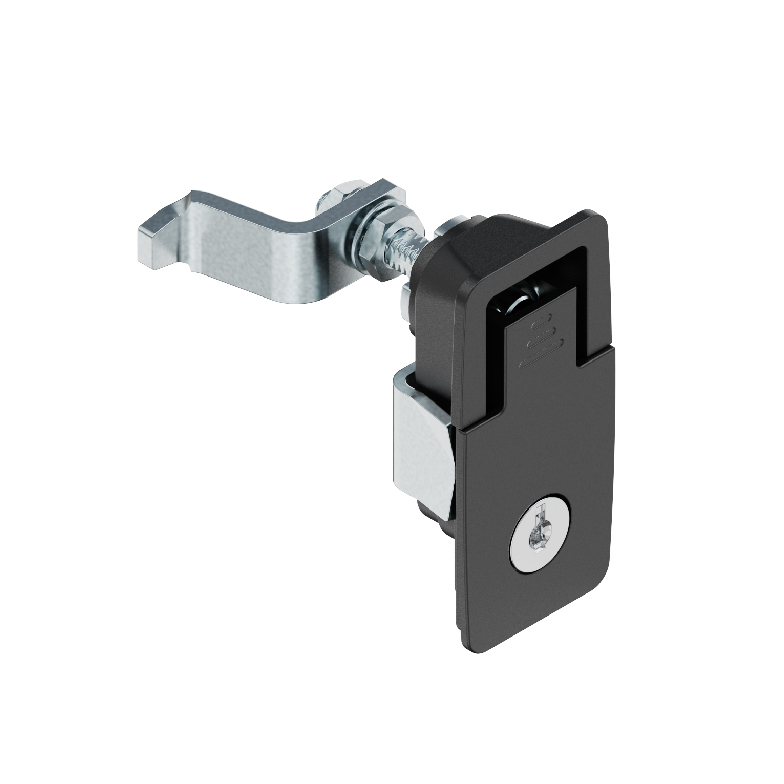

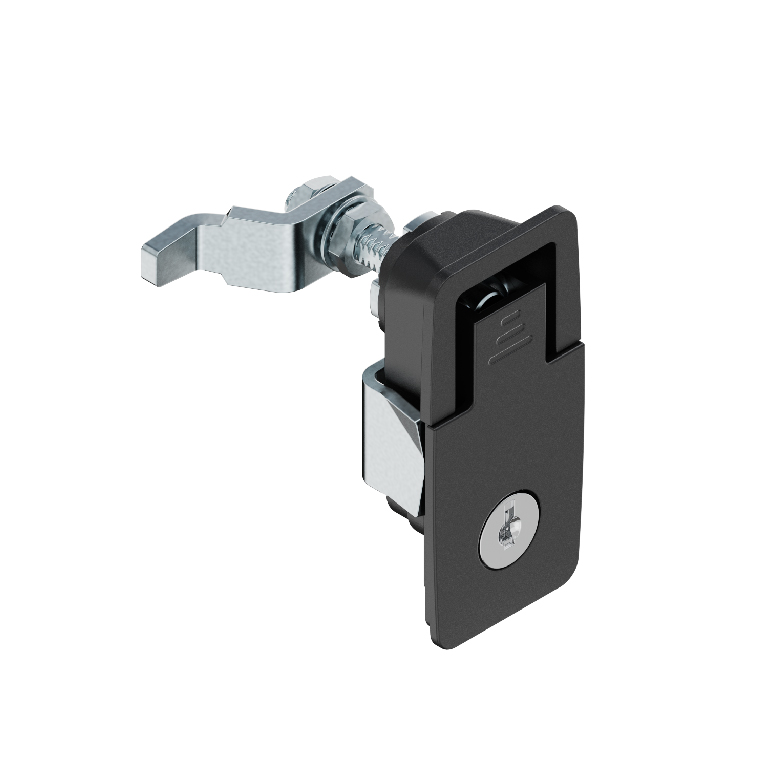

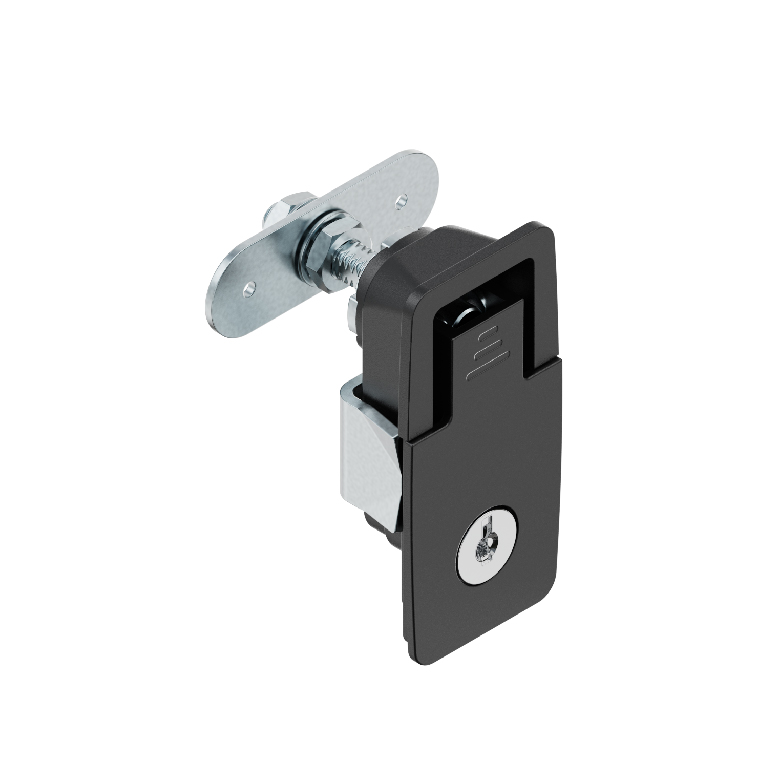

MS106
[Icon Specification]
Features
● Material:Zinc die-casting body Zinc plating cam、fixing parts

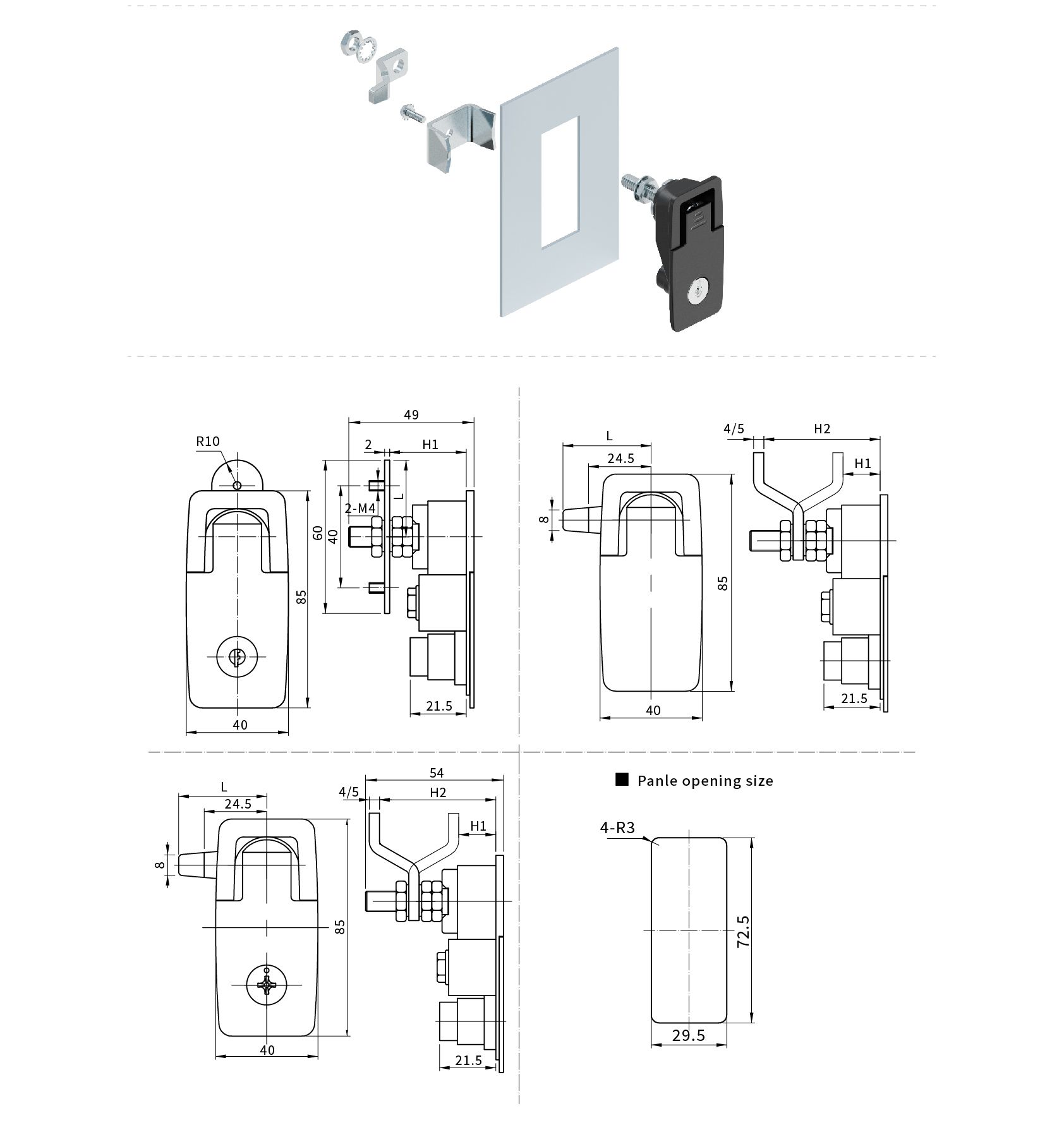

● Panel thickness:1~3.5mm.
● Remark:compression lock 3mmpu11-up
More Products
Product Details

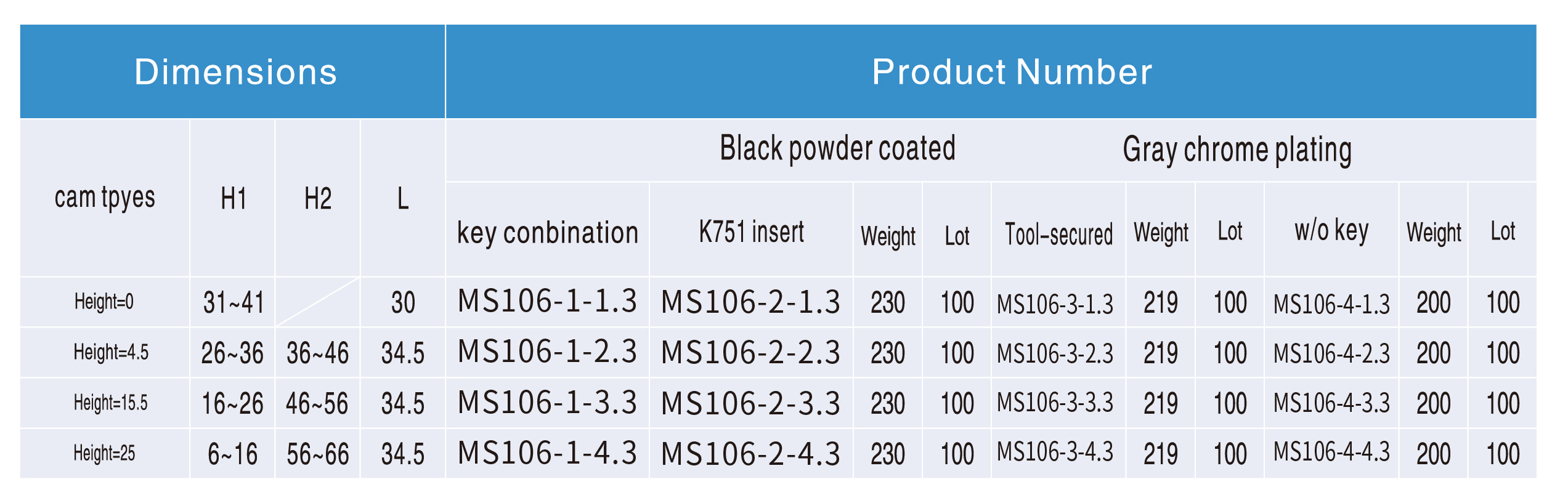

Specifications

Download

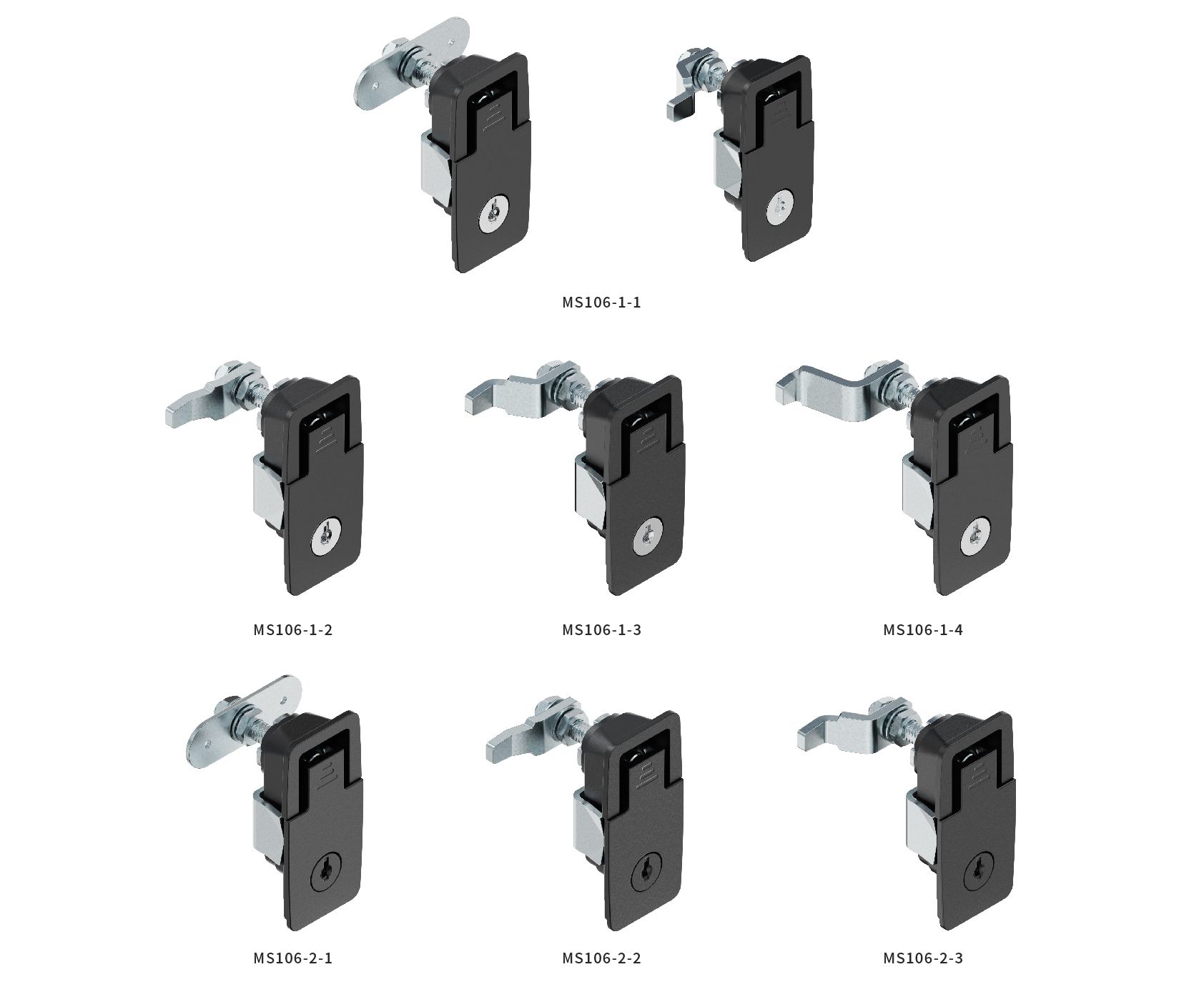

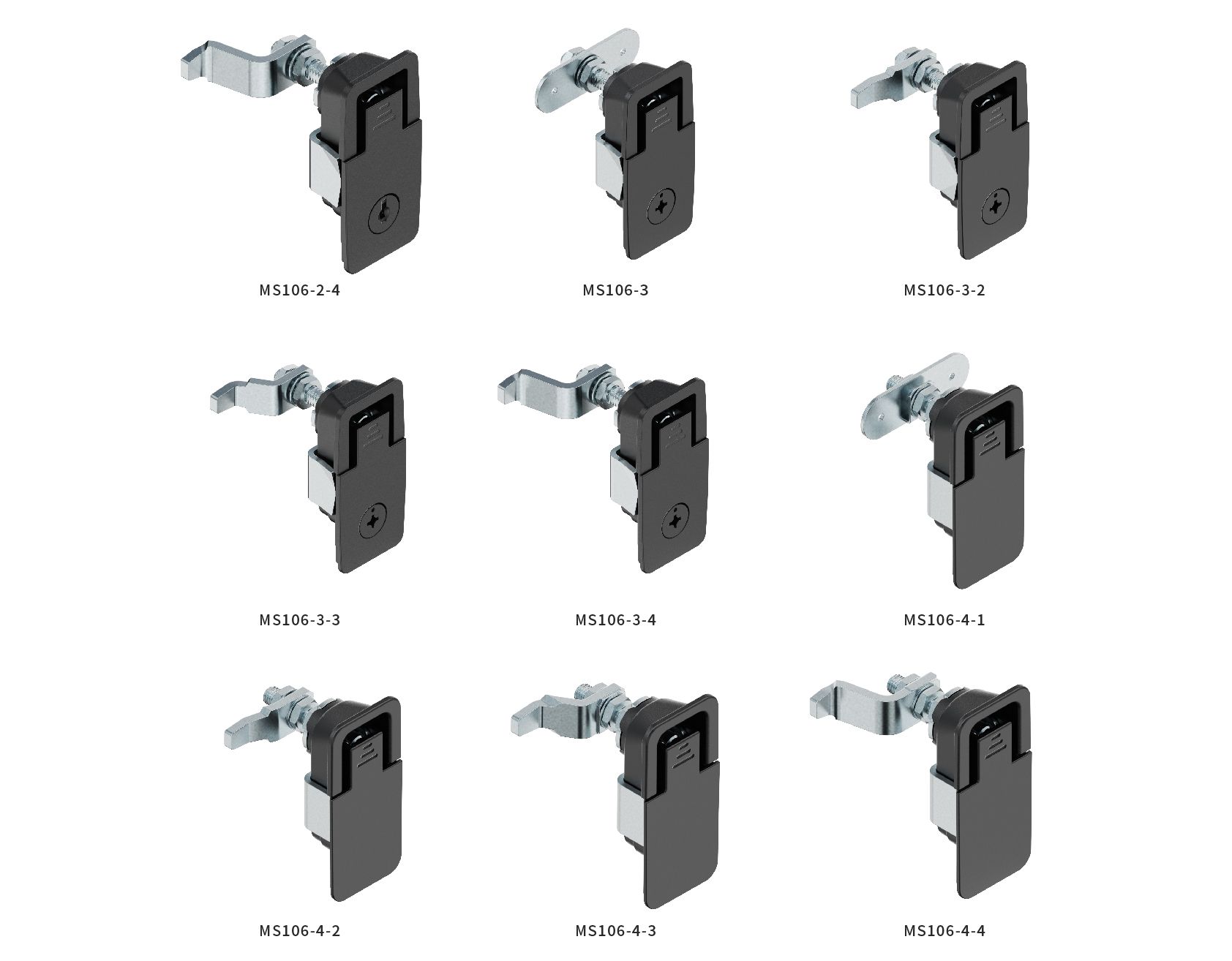

MS106-1-1.3.igs MS106-1-2.3.igs MS106-1-3.3.igs MS106-1-4.3.igs MS106-2-1.3.igs MS106-2-2.3.igs MS106-2-3.3.igs MS106-2-4.3.igs MS106-3-1.3.igs MS106-3-2.3.igs MS106-3-3.3.igs MS106-3-4.3.igs MS106-4-1.3.igs MS106-4-2.3.igs MS106-4-3.3.igs MS106-4-4.3.igs MS106系列.pdf
